Brand Name : Innolux
Model Number : F070A57T-6T1
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union, D/P
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : F070A57T-6T1
Diagonal Size : 7.0"
Panel Type : a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution : 720(RGB)×1640 257PPI
Pixel Format : RGB Vertical Stripe
Active Area : 70.956(W)×161.622(H) mm
Outline Dim. : 72.956(H)×166.622(V)×0.3(D) mm
Contrast Ratio : 1500:1 (Typ.) (TM)
Response Time : 25 (Typ.)(Tr+Td)
Designed For : Mobile Phone
New F070A57T-6T1 7.0 inch LCD Display Monitor
F070A57T-6T1 LCD Panel Product details :
Brand | Innolux |
Model P/N | F070A57T-6T1 |
Diagonal Size | 7.0" |
Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
Resolution | 720(RGB)×1640 257PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 70.956(W)×161.622(H) mm |
Bezel Opening | - |
Outline Dim. | 72.956(H)×166.622(V)×0.3(D) mm |
Treatment | - |
Luminance | 0 cd/m² |
Contrast Ratio | 1500:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 25 (Typ.)(Tr+Td) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
Operating Mode | AAS, Normally Black, Transmissive |
Plate Thickness | 0.15+0.15 mm |
Transmittance | 3.82% (Typ.) |
Support Color | 16.7M 71%NTSC |
Light Source | No B/L |
Weight | TBD |
Designed For | Mobile Phone |
Frame Rate | 60Hz |
Touch Panel | In-Cell Touch |
D-IC Detail | COG Suggest ILI9881H, NT36525, NT36525B, ILI9881H, FT8006P, FT8006S-AA |
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
F070A57T-6T1 LCD Panel Shipping and Package :
F070A57T-6T1 LCD Panel FAQ :
Q: How long is the warranty of F070A57T-6T1 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of F070A57T-6T1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of F070A57T-6T1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods F070A57T-6T1 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
![]() |

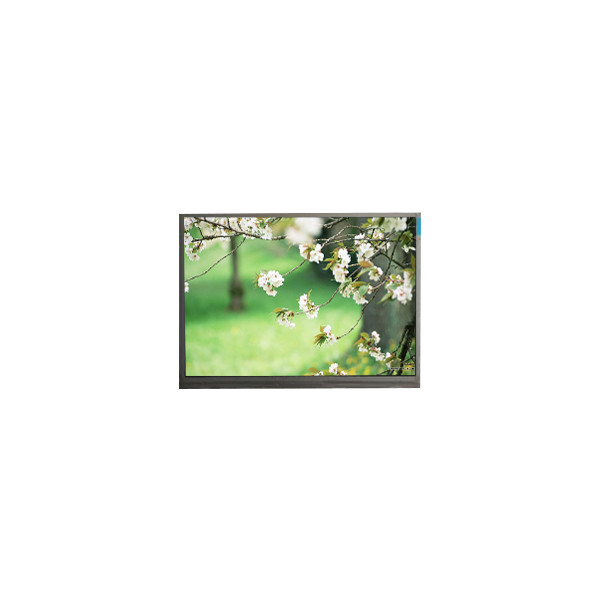

New F070A57T-6T1 7.0 inch LCD Display Monitor Images |
