AUO 5.5 inch LCD Screen Display Panel H546DAN08.2
H546DAN08.2 Product details :
| Brand | AUO |
| Model P/N | H546DAN08.2 |
| Diagonal Size | 5.5" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline (mm) | 70.44×127.16×0.3 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 35 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Glass Thickness | 0.15+0.15 mm |
| Transmissivity | 3.7% (Typ.)(with APCF) |
| Color Depth | 16.7M 70%NTSC |
| Backlight | No B/L |
| Mass | 7.00g (Typ.) |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Suggest COG NT35532, HX8398A, ILI9885, OTM1903A, R61322 |
| Voltage Supply | 1.8/3.0/15/-12V (Typ.)(VDD/VDDI/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 75 °C |
Make sure you are ordering the correct screen
Screen size, accessories, connectors, type and resolution must match the original screen.
H546DAN08.2 International buyers please note:
(1) Please read our regulations and recommendations carefully before ordering. This is important.
(2) If you need a lot. You can contact me by mail. I will give you a discount. Before buying: If you have any special request..please let me know when ordering the item
Processing time: 2-3 working days processing time (excluding weekends and holidays)
Shipping: 100% tested before delivery
H546DAN08.2 Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
H546DAN08.2 Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
H546DAN08.2 FAQ:
Q: Can you give me a discount if I need a large quantity of H546DAN08.2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of H546DAN08.2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of H546DAN08.2 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
|
|

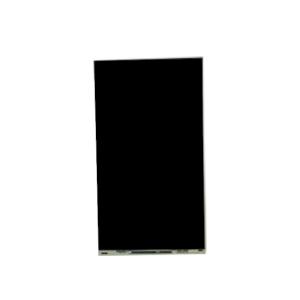

AUO 5.5 inch LCD Screen Display Panel H546DAN08.2 Images
|
